GPS FURUNO GP-32(ĐÃ QUA SỬ DỤNG)


-THIẾT BỊ ĐÃ QUA SỬ DỤNG CÒN HOẠT ĐỘNG TỐT

Compact in size, waterproof, yet big on power, features and performance, FURUNO GP-32 is perfect for a wide range of smaller fishing boats and pleasure craft.

The unit has a waterproof display and is built to stand up to tough marine conditions. This durable casing houses an impressive memory, capable of storing up to 1,000 points of ship’s track, 999 points for marks and waypoints, and 50 routes of up to 30 waypoints each. Vital navigation data is presented on a 4.5-inch diagonal Silver Bright LCD screen with adjustable brilliance. Innovative graphic displays include Nav, Highway, Steering, Track Plotting, and two operator programmable modes, all extremely easy to use.

Features

  • Improved accuracy with built-in SBAS (WAAS/EGNOS/MSAS) receiver

  • 4.5" Silver Bright LCD display

  • Multiple display modes to suit a variety of navigational requirements

  • Up to 999 waypoints, 50 routes and 1,000 track points

  • One-touch waypoint entry

  • Customizable NavData screens

  • Track Back feature stores waypoints at user defined intervals for early trace-back cruise

  • Waypoint & Route upload/download through RS-232C port

Specifications

Display Unit

Screen Type 4.5" monochrome LCD
Screen Resolution 120 x 64
GPS Antenna External
Display Modes Plotter, Steering, Highway, NAV data, Destination, User display

GPS / SBAS (WAAS/EGNOS/MSAS)

Receiving Type Twelve discrete channels, C/A code, all-in-view
Receiving Frequency L1 (1575.42 MHz)
SBAS Available
Accuracy GPS: 10 m (95%), DGPS: 5 m (95%), WAAS: 3 m (95%)

PLOTTER

Chart WGS-84 (and others)
Memory Capacity 1,000 ship's track points
999 waypoints with comments
50 routes, 30 waypoints/route

OTHERS

Waterproofing Display unit: IPX5, Antenna unit: IPX6
Power Supply 12-24 VDC, 0.24--0.12 A
Size 125 (H) x 209 (W) x 85 (D)
Weight 0.54 kg

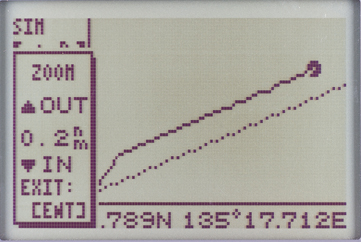

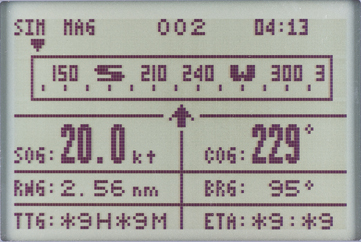

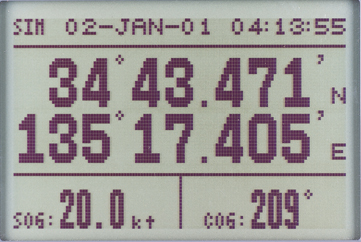

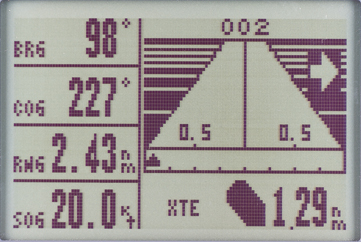

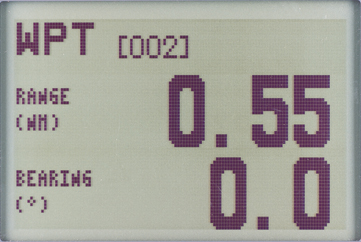

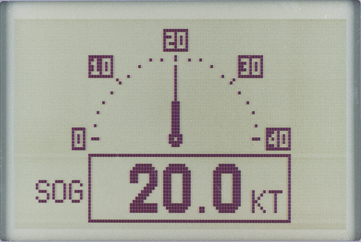

Screenshots

Equipment List

Standard

  •  DISPLAY UNIT GP-32-E
    1 UNIT
  •  ANTENNA UNIT GPA-017
    WITH 10 M CABLE
    1 PC
  •  CABLE
    MJ-A7SPF0009-020C
    1 PC
  •  HARD COVER
    1 PC
  •  INSTALLATION MATERIALS AND SPARE PARTS
    1 SET

Option

  •  MAST MOUNTING KIT
  •  POWER/DATA CABLE ASSY2 M
  •  L-ANGLE MOUNTING BASE
  •  RIGHT ANGLE MOUNTING BASE
  •  HANDRAIL MOUNTING BASE
  •  FLUSH MOUNT KIT (S-TYPE)
  •  FLUSH MOUNT KIT (F-TYPE)
