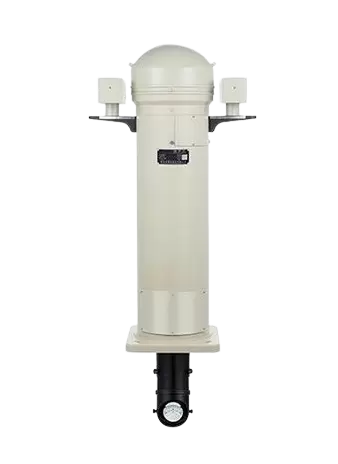

La bàn từ chuẩn CGF-165W
Tính năng
Description:
CGF-165W reflection magnetic compass is less affected by hull magnetism, and the compass deviation is relatively small and easy to correct. Its style is beautiful and generous. Its reflective dial is clear and bright. Its performance fully meets the standards and requirements of CCS and IMO and other relevant navigation equipment. The magnetic compass adopts a new generation of pointing and correcting magnets, which can greatly improve the accuracy of the magnetic compass and sensor.
Adopt standard: IMO
Production Authentication: CCS, VR
|
Technical Data |
|
|
Dial diameter |
Φ165mm |
|
Dial indexing |
0 ° ~ 360 ° 1 ° per cell |
|
Operating temperature |
-25 ℃ ~ 60 ℃ |
|
Pointing error (h = 35 μ t,t = 20±3 ℃) |
≤ 0.5 ° |
|
Half period (h = 35 μ t,t = 20±3 ℃) |
≥8.62 S |
|
Friction error (h = 35 μ t,t = 20±3 ℃) |
≤ 0.09 ° |
|
Principal semicircle self-difference correction energy |
1 ° ~ 45 ° |
|
Sub-semicircle self-difference correction energy |
1 ° ~ 6 ° (magnetic inclination angle Q = 45 °) |
|
Quadrant deviation correction energy |
0.5~10 |
|
Tilt deviation correction energy |
-75 ~ +75 μT |
|
Lens barrel |
± 100mm |
|
Disk image magnification |
& asymp;1.5 times (original index) |
|
Lighting power supply |
AC 110-220V,DC 24V |
|
Dimensions |
720 × 420 × 1330mm (lens barrel length does not count) |
|
Mounting hole size |
hole spacing 442 aperture Φ46 |
|
Total weight |
60kg |
CCS, VR
