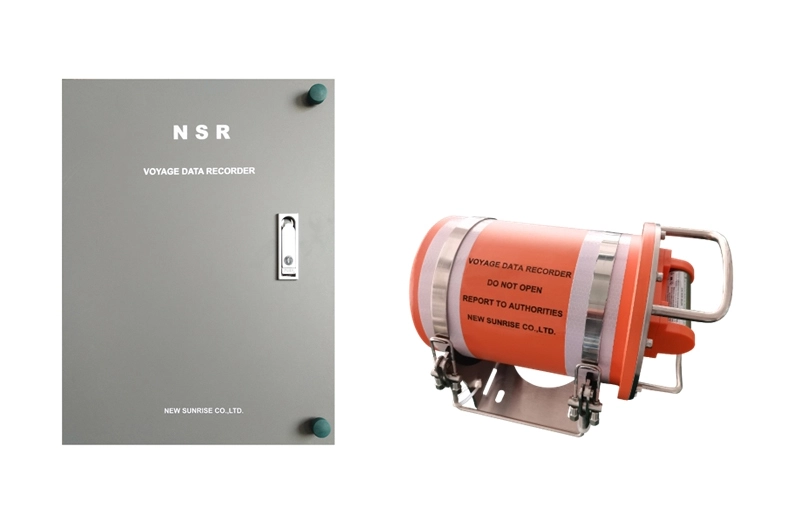

NSR NVR-9000S S-VDR

Tính năng

- NSR’s own FFC and FPC adopted.

- Real monitoring software available for easy check.

- Flexible configuration for either VDR or S-VDR.

- Linux O/S used in firmware of VDR system.

- Large size color LCD with touch screen operation.

- Data interface to BAM System.

- NVR-9000S SVDR is designed to comply with the latest IMO regulation MSC.493 (104), IMO MSC.302 (87), IEC 62923-1, IEC 62923-2 and IEC 62288.

- Float-Free Capsule (FFC) or Fixed Protective Capsule (FPC) can be selected as the storage medium.

- Both FFC and FPC has the capacity of 64G each.

- Data Acquisition Unit (DAU) is fitted with LRU (64G SSD).

- 8 ch of serial ports are available in DAU.

Giá bán: Liên hệ

Data Acquisition Unit (DAU)
Interface:	Ethernet IEC 61162-450	4 ch
	Serial IEC 61162-1/2, RS422	8 ch
	VHF Audio	2 ch
	Microphone	8 ch
	Remote Alarm Unit	1 ch
	USB	1 ch
DC 24V output:	Remote Alarm Unit (RAU)	1 ch
	Fixed Protective Capsul (FPC)	1 ch
	Float-Free Capsule (FFC)	1 ch
LRU:	Memory	64 GB
LRU:	Recording Duration	min 48 hours
Reserve Battery Capacity:		min 2 hours
Compass Safe Distance：	Standard Compass Steering Compass	2.00m 1.20m
Fixed Protective Capsule (FPC)	Memory	64 GB
	Recording Duration	min 48 hours
	Beacon Battery Capacity	min 90 days
	Beacon Battery Life	3 years
	Compass Safe Distance	Standard Compass: 1.00m Steering Compass: 0.55m
Float-Free Capsule (FFC)	Memory	64 GB
	Recording Duration	min 48 hours
	Battery Capacity	min 168 hours
	Battery Life	5 years
	Compass Safe Distance	Standard Compass: 0.90m Steering Compass: 0.45m
Data Extension Unit (DEU) (OPTIONAL)
Interface:	Analog Input	8 ch
	Digital Input	64 ch
	Serial IEC 61162-1/2	16 ch
	Ethernet	1 ch
Compass Safe Distance：	Standard Compass Steering Compass	1.45m 0.95m
Video Interface Unit (VIU) (OPTIONAL)
Interface:	VGA	1-2 ch
	Ethernet	1-2 ch
Compass Safe Distance：	Standard Compass Steering Compass	0.95m 0.55m
Remote Alarm Unit (RAU)	Serial IEC 61162-1/2, RS422	1 ch
	Compass Safe Distance	Standard Compass: 0.35m Steering Compass: 0.20m
POWER SUPPLY	Data Acquisition Unit (DAU)	AC110V/220V, 0.5～1.5A, 50/60Hz
	Data Extension Unit (DEU)	DC24V, 0.5A
	Video Interface Unit (VIU)	DC24V, 0.3A
